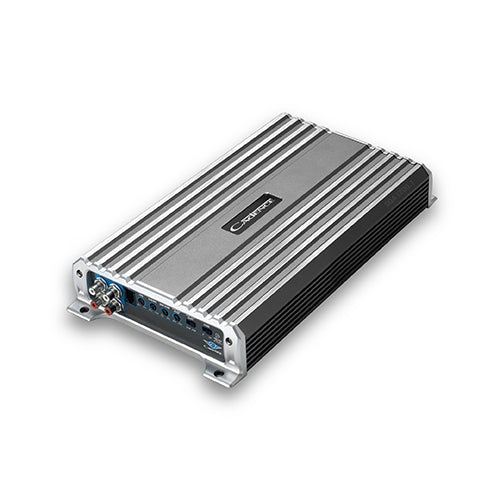

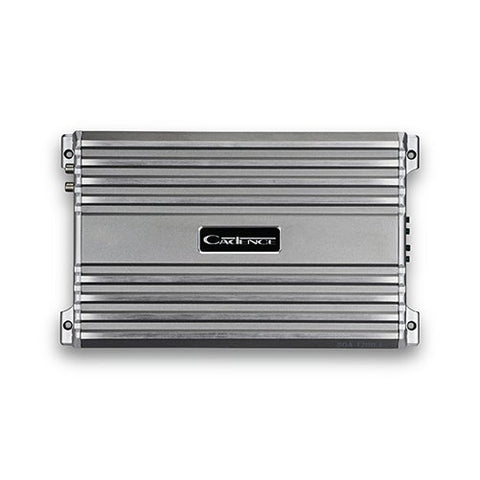

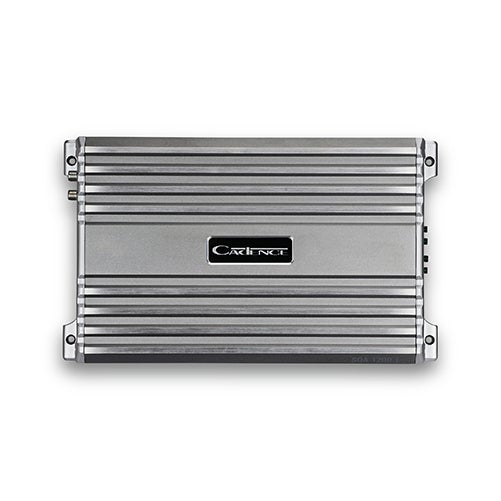

SQA1200.1 | Class D Mono Amplifier 1200W X 1 @ 1 ohm

Regular price $595.00
Regular price Sale price $595.00
Sale Sold out
Shipping calculated at checkout.

Product Highlights:

  • Model number: SQA1200.1
  • Channel / class: Mono / D
  • RMS power at 2 ohm-14.4V: 1200W x 1
  • RMS power at 1 ohm-14.4V: 800 x 1
  • RMS power at 4 ohm-14.4V: 450 x 1
  • Fuse rating: 30A x 4
  • Dimensions (inch): 10.6(w) x 1.9(h) x 7.3(d)
    (mm): 270(w) x 48(h) x 185(d)

Description

The SQA Series amplifiers can produce their rated power with an efficiency of more than 80%! These Full Range Class D amplifiers will take it easy on your vehicles charging system while still rocking out to the max. Worry free defensive circuits which detect Short Circuit, Low Battery Voltage, Over Current and Thermal Protection which rollback power from damaging circumstances. The SQA Series have a small footprint for easy installation in tight spaces, and include a robust assortment of crossover adjustments to meet many types of installs and includes a Remote Level Control (1CH, 3CH, and 5CH only) for adjusting the intensity of your bass.

PERFORMANCE SQA1200.1
RMS power at 1 ohm (watts x channel) 1200 x 1
RMS power at 2 ohm (watts x channel) 800 x 1
RMS power at 4 ohm (watts x channel) 450 x 1
THD at rated RMS power Less than 0.05%
Signal to noise ratio >96 dB
FEATURES
Amplifier class D
Low pass filter 50 – 150 Hz
Subsonic filter 10 – 50 Hz
Bass Boost 0 dB- 18 dB
Fuse rating 30A x 4
Speaker level input RCA
Width (inch / mm) 10.6 / 270
Height (inch / mm) 1.9 / 48
Depth (inch / mm) 7.3 /185
